Configuration for PDF output

Definitions for PDF output are stored in the configuration under the key "pdf".

{
   // ... generic part ...
   "pdf" : {
     // ... layout definitions ...
   },
}

Topics in this document:

Document info

PDF document properties.

  "info" : {
      "title"    : "%{title}",
      "author"   : "",
      "subject"  : "",
      "keywords" : "",
  },

Note that the context for substitutions is the first song.

CSV

With the PDF, ChordPro can optionally generate a CSV document that describes the content of the PDF outout. This can be used with some third-party tools when importing or viewing the PDF document.

For details, see Configuration for CSV output.

Papersize

The size of the paper for which output must be formatted. The size can be specified either as the name of a known page size, e.g. "a4", or as a 2-element list containing the width and height of the page in PDF units (DTP points, pt, 1/72 inch).

    "papersize" : "a4",
    // Same as: "papersize" : [ 595, 842 ]

Theme

These settings can be used to control the foreground and background colours of the PDF output.

    "theme" : {
        "foreground"        : "black",
        "foreground-light"  : "grey90",
        "foreground-medium" : "grey70",
        "background"        : "none",
    }

Background "none" or "white" means there will be no background colour added to the output.

It may be useful to put your theme settings in a separate config file, together with additional settings that make up the theme. For example, these settings define a ‘dark’ theme that can be applied to any style.

{
    "pdf" : {
        "theme" : {
            "foreground"       : "white",
            "foreground-light" : "#555555",
            "background"       : "black",
        },
    },
}

Other configuration settings that use colours can use foreground, foreground-light, foreground-medium, and background to refer to the colours defined in the theme.

Inter-column space

When output is produced in multiple columns, this is the space between the columns, in pt.

    "columnspace"  :  20,

Page margins

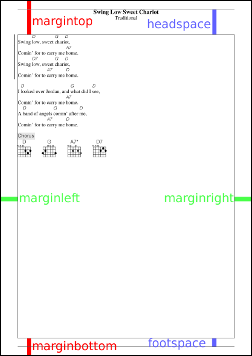

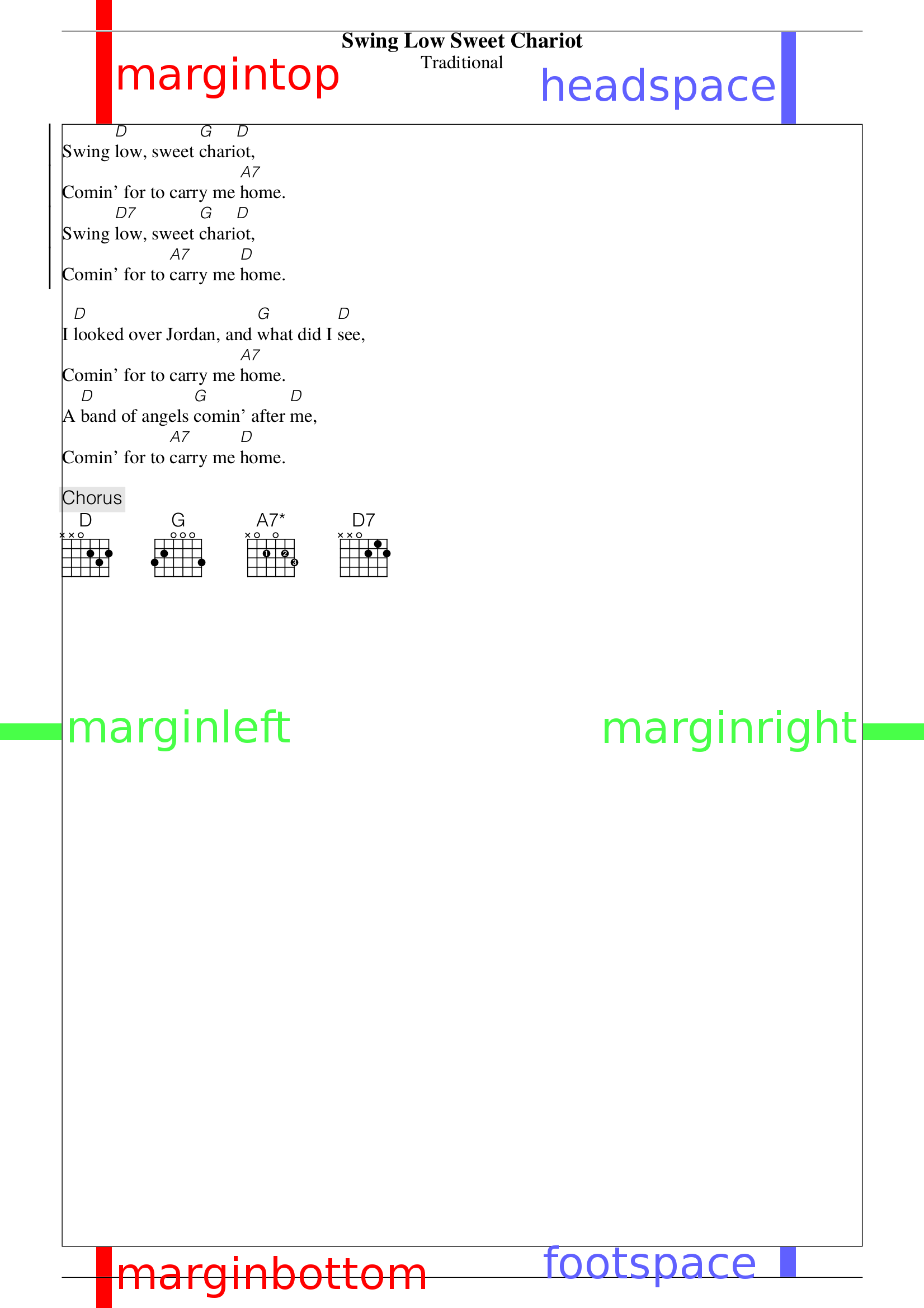

Click on the image for a larger version.

    "margintop"    :  80,
    "marginbottom" :  40,
    "marginleft"   :  40,
    "marginright"  :  40,
    "headspace"    :  60,
    "footspace"    :  20,

Heading on first page only

Put the heading on the first page only, and add the headspace to the other pages so they become larger.

    "head-first-only" : false,

Spacing

This controls the distance between lines as a factor of the font size.

    "spacing" : {
        "title"  : 1.2,
        "lyrics" : 1.2,
        "chords" : 1.2,
        "diagramchords" : 1.2,
        "grid"   : 1.2,
        "tab"    : 1.0,
        "toc"    : 1.4,
        "empty"  : 1.0,
    },

lyrics controls the spacing between songlines (chords + lyrics).

chords controls the spacing between chords and lyrics in songlines.

diagramchords controls the spacing between the chordname and the diagram in chord diagrams.

By setting the spacing for empty to a small value, you get fine-grained control over the spacing between the various parts of the song.

Labels

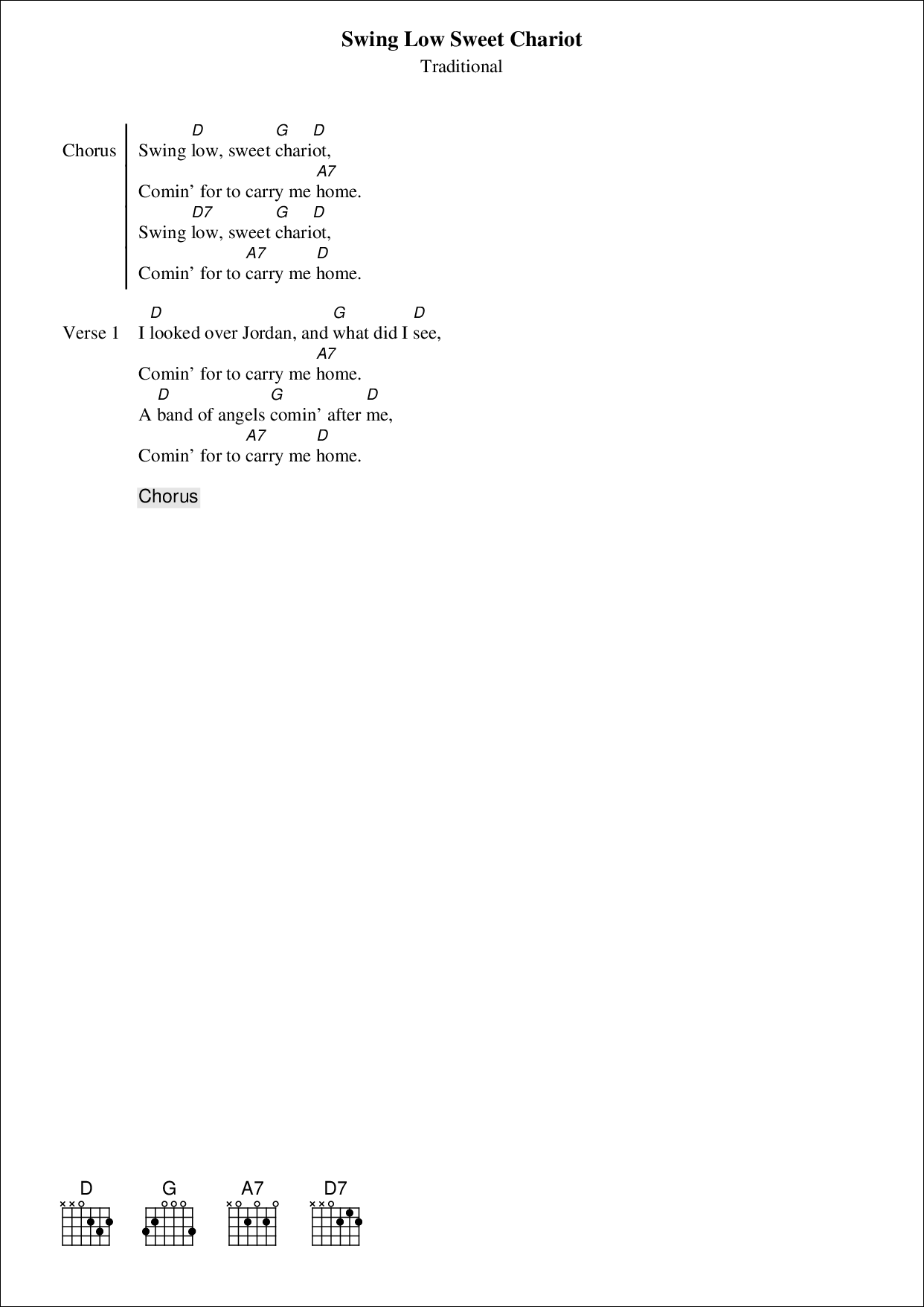

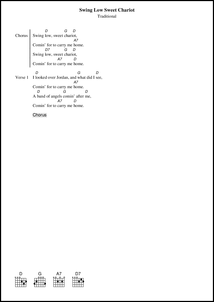

Section labels can be added to a specific verse, chorus or grid. See e.g. start_of_verse.

    // This opens a margin for margin labels.
    "labels" : {
        // Margin width. Default is "auto".
        "width" : "auto",
        // Alignment for the labels. Default is left.
        "align" : "left",
        // Alternatively, render labels as comments.
        "comment" : ""  // "comment", "comment_italic" or "comment_box",
    },

When comment is set to one of the suported comment types, the label will be printed as a comment before the section contents. The settings of width and align are ignored.

Otherwise, when width is set to a positive value, the lyrics and associated chords will be indented by this amount and section labels, if any, are printed.

When width is set to "auto", the song will indented automatically, but only if labels are actually used.

align will control how the labels are aligned in the margin.

The appearance of the label text can be set in the fonts. It defaults to the text (lyrics) font and size.

Chorus style

ChordPro can format a chorus in several different ways:

the chorus part can be indented;
a side bar can be drawn to the left of the chorus part;

the {chorus} directive can print a comment text (tag), or quote the preceding chorus.

  "chorus" : {
      // Indentation of the chorus.
      "indent"     :  0,
      // Chorus side bar.
      // Suppress by setting offset and/or width to zero.
      "bar" : {
           "offset" :  8,
           "width"  :  1,
           "color"  : "foreground",
      },
      // Recall style: Print the tag using the type.
      // Alternatively, quote the lines of the preceding chorus.
      "recall" : {
           "tag"   : "Chorus",
           "type"  : "comment",
           "quote" : false,
      },
  },

Chords in a side column

This is an alternative style where the chords are placed in a separate column at the right of the lyrics. Chord changes are marked by underlining the lyrics.

    // This style is enabled by setting "chordscolumn" to a nonzero value.
    // Value is the column position.
    // "chordscolumn" : 400,
    "chordscolumn" :  0,
    "capoheading" : "%{capo|Capo: %{}}",

When a capo is set a heading indicating the current capo setting is added. The text of the heading is defined by capoheading.

Ignore {titles} directives

Traditionally, the {titles} directive was used to control titles flush. ChordPro has a much more powerful mechanism but this can conflict with legacy {titles} directives. If you use custom title formatting, setting titles-directive-ignore to a true makes ChordPro ignore the legacy directives.

    "titles-directive-ignore" : false,

Chord diagrams

Chord diagrams are added to the song to show the chords used in the song.

By default the diagrams are at the bottom of the first page, but it is also possible to have them at the top, following the song, or in a side column on the first page of the song. See Chords diagrams in a side column below.

A chord diagram consists of a number of cells. Cell dimensions are specified by width and height.
The horizontal number of cells depends on the number of strings.
The vertical number of cells is vcells, which should be 4 or larger to accomodate most common chords.

The horizontal distance between diagrams is hspace times the cell width.
The vertical distance between lines of diagrams is vspace times the cell height.

linewidth is the thickness of the diagram lines as a fraction of the cell width.

If the chord definition has info for finger settings, these will be shown if fingers is true.

diagrams {
  show     :  bottom, // or top, right, below, false
  align    :  left,   // or right, center, spread
  width    :  6,      // of a cell
  height   :  6,      // of a cell
  vcells   :  4,      // vertically
  linewidth : 0.1,    // of a cell width
  nutwidth :  5,      // linewidth
  hspace   :  3.95,   // horizontal space between, fraction of width
  vspace   :  3,      // verticalal space between, fraction of height
  dotsize  :  0.8,    // of a cell
  barwidth :  0.8,    // of a dot
  fingers  :  true,   // show fingering if available (or "below")
},

With the above settings, chord diagrams will look like:

An example of "show":"right", where the chord diagrams are placed in a separate column at the right of the lyrics instead of at the end of the song.

The align property is ignored for show:right.

Note that command line option --lyricsonly implies "show":false for diagrams.

Keyboard diagrams

Keyboard diagrams are added to the song to show the chords used in the song. By default the diagrams are at the end of the song but it is also possible to have them at the bottom, or in a side column on the first page of the song. See Chords diagrams in a side column below.

By default ChordPro adds diagrams for string instruments. To add keyboard diagrams set diagrams.type to "keyboard", see Configuration file contents - Generic.

A keyboard diagram consists of a number of keyboard keys, typically spanning one or two octaves. The width of a white key is specified by width, and the height of the keyboard diagram is specified by height.
The number of white keys can be specified with keys and should have one of the values 7, 10, 14, 17, or 21.
Diagrams can start with the key C or F. This can be specified by base.

The horizontal distance between diagrams is hspace times the width.
The vertical distance between lines of diagrams is vspace times the height.

linewidth is the thickness of the diagram lines as a fraction of the key width.

Finally, the colour to represent keys that are part of the chord (pressed) can be specified with pressed. It takes the name of a colour, or a hex format #RRGGBB.

kbdiagrams {
  show     :  bottom, // or top, right, below, false
  align    :  left,   // or right, center, spread
  width    :   4,     // of a single key
  height   :  20,     // of the diagram
  keys     :  14,     // or 7, 10, 14, 17, 21
  base     :  "C",    // or "F"
  linewidth : 0.1,    // fraction of a single key width
  pressed  :  foreground-medium,   // colour of a pressed key
  hspace   :  3.95,   // horizontal space between, fraction of width
  vspace   :  0.3,    // verticalal space between, fraction of height
},

With the above settings, keyboard diagrams will look like:

The align property is ignored for show:right.

Note that command line option --lyricsonly implies show:false for diagrams.

Grid lines

Properties for the lines of grid sections.

  // Grid section lines.
  // Suppress when "show" is false, e.g. for singers.
  // The width and colour of the cell bar lines can be specified.
  // Enable by setting the width to the desired width.
  "grids" : {
      "cellbar" : {
          "width" : 0,
          "color" : "foreground-medium",
      },
      "show": true,
      "symbols" : {
          "color" : "blue",
      },
      "volta" : {
          "span" : 0.7,
          "color" : "blue",
      },
  },

Note that command line option --lyricsonly implies "show":false for grids.

Even/odd page printing

Pages can be printed neutrally (all pages the same) or with differing left and right pages.
This affects the page titles and footers, and the page margins.

    "even-odd-pages" : 1,

The default value is 1, which means that the first page is right, the second page is left, and so on.
The value -1 means the first page is left, the second page is right, and so on.
The value 0 makes all pages the same (left).

The setting of even-off-pages affects content items cover page (if any), table of contents (if any) and the songbook. These content items will start on a right page (even-odd-pages = 1) or a left page (even-odd-pages = -1).

The setting of pagealign-songs controls whether each song starts on an even or odd page as well.

    "pagealign-songs" : 1,

With a value greater than 1, ChordPro will additionally force the resultant PDF to always have an even number of pages.

Note that with pagealign-songs = 1 empty (blank) pages are inserted (as conventional in book printing), while with pagealign-songs > 1 the empty pages have headings and footers.

Page reordering

Pages can be reordered based on the song title or subtitle. Also possible is to align songs with two pages on an even page, so that you can view it without having to turn a page.

    "sort-pages" : ""

sort-pages can be set to a comma separated list of title, subtitle, 2page, compact, and desc.

title: sort pages alphabetically by title.
subtitle: sort pages alphabetically by subtitle. If this is used together with title, only title is used.
2page: make sure songs with even pages are placed on even pages, so most. if not all, of the song is visible in a normal book without needing to turn a page. A blank page is added to align.
compact: implies 2page - instead of adding a blank page, an odd-paged song is moved in front of this song to achieve even page alignment.
Note: this option requires extra processing time since the songbook has to be processed twice.
desc: modifier for title or author to sort descending.

Page headers and footers

ChordPro distinguishes three types of output pages:

the first page of the output: first;
the first page of a song: title;
all other pages: default.

Each of these page types can have settings for a page title, subtitle, footer, and background. The settings inherit from default to title to first. So a title page has everything a default page has, and a first page has everything a title page has.

Each title, subtitle and footer has three parts, which are printed to the left of the page, centered, and right. When even/odd page printing is selected, the left and right parts are swapped on even pages.

The title, subtitle and footer may also be set to an array of three part strings, which will be printed on separate lines.

All heading strings may contain references to metadata in the form %{name}, for example %{title}. The current page number can be obtained with %{page}, and the song index in the songbook with %{songindex}. For a complete description on how to use metadata in heading strings, see here.

background can be used to designate an existing PDF document to be used as background. It has the form filename or filename:page. Page numbers count from one. If odd/even printing is in effect, the designated page number is used for left pages, and the next page (if it exists) for right pages.

    "formats" : {

        // By default, a page has:
        "default" : {
            // No title/subtitle.
            "title"     : null,
            "subtitle"  : null,
            // Footer is title -- page number.
            "footer"    : [ "%{title}", "", "%{page}" ],
            // Background pages: 5 and 6 from bgdemo.
           "background" : "examples/bgdemo.pdf:5",
        },

        // The first page of a song has:
        "title" : {
            // Title and subtitle.
            "title"     : [ "", "%{title}", "" ],
            "subtitle"  : [ "", "%{subtitle}", "" ],
            // Footer with page number.
            "footer"    : [ "", "", "%{page}" ],
            // Background pages: 3 and 4 from bgdemo.
           "background" : "examples/bgdemo.pdf:3",
        },

        // The very first output page is slightly different:
        "first" : {
            // It has title and subtitle, like normal 'first' pages.
            // But no footer.
            "footer"    : null,
            // Background pages: 1 and 2 from bgdemo.
           "background" : "examples/bgdemo.pdf:1",
        },
    },

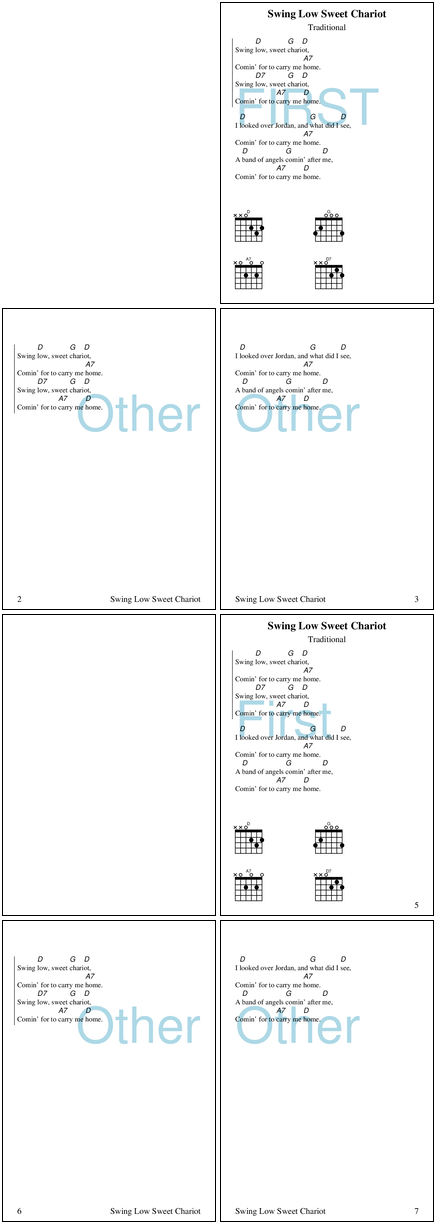

The effect of the above settings can be seen in the following picture.

Page 1 is the very first output page (type first). It is like a title page but, according to typesetting conventions, doesn’t have the page number in the footer.

Page 5 is the first page of a song, but not the very first (type title). It has the song title and subtitle in the heading, and only the page number in the footer. By default ChordPro starts each song on an odd page and therefore inserts an alignment page (page 4).

The other pages are normal pages (type default). They have no heading and have the page number and song title in the footer. Pages inserted for alignment are completely blank.

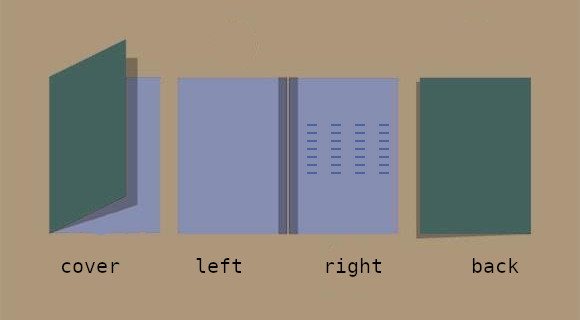

Note that by default ChordPro produces different odd and even pages. Therefore the page numbers on (odd) pages 3 and 7 are at the right side, while they are at the left side on (even) pages 2 and 6.

Front and Back Matter

Front matter and back matter can be specified in the config file.

  // PDF file to add as front matter.
  "front-matter" : "",
  // PDF file to add as back matter.
  "back-matter" : "",

The value should be the name of a file that contains a PDF document. This document is prepended (for back matter, appended) to the songbook.

Front matter and back matter can be overriden with command line options.

Font libraries

You can either designate a built-in font by its name, or give the filename of a TrueType (ttf) or OpenType font (otf).
The filename should be the full name of a file on disk, or a relative filename which will be looked up in system dependent font libraries.

The fontdir setting can be used to add one or more private font directories to the font libraries. The private directories will be searched first.

    // Fonts.
    // Fonts can be specified by name (for the corefonts)
    // or a filename (for TrueType/OpenType fonts).
    // Relative filenames are looked up in the fontdir.
    // fontdir : [ /usr/share/fonts/liberation /home/me/fonts ]
    fontdir : null

Fonts

All printable items like lyrics, chords and comments can be associated with a font specification. This allows fine-grained control over the printed output.

For example:

    fonts: {
        title {
            description  : "serif 14"
            color : blue
        }
        ...
    }

A font specification consists of the following settings:

description, name or file
The description designates a font by a family name, optional style, weight and size. This is the preferred way.
Alternatively, you can either use name to designate a built-in font by its name, or file to give the filename of a TrueType (ttf) or OpenType font (otf).
The filename should be the full name of a file on disk, or a relative filename which will be looked up in system dependent font libraries. See Font libraries.
size
The size of the font, in PDF units (1/72 inch).
color
The colour of the font. See ChordPro Colours for details on colours.
background
The background color.
frame
A boolean value indicating that a frame (box) should be drawn around the text.

The following printable items can have fonts associated.

title
The font used for page titles.
Default is “serif bold 14”.
subtitle
The font used for page subtitles.
Default is the setting for text.
footer
Default is the setting for subtitle at 60% size.
text
The font used for lyrics texts.
Default is “serif 12”.
chorus
The font used for chorus texts.
Default is the setting for text.
chord
The font used for chords above the lyrics.
Default is “sans italic 10”.
annotation
The font used for annotations.
Defaults to the chord font.
comment
The font used for comments.
Default is “sans 12”, with a grey background.
comment_italic
Default is “sans italic 12”, with a grey background.
comment_boxed
Default is “sans 12”, with a frame.
tab
The font used for the contents of tab environments.
Default is “mono 10”.
label
The font used for section labels.
Default is the setting for text.
toc
The font used for the table of contents.
Default is “serif 11”.
grid
The font used for grid elements.
Default is the setting for chord.
grid_margin
The font used for grid margin texts.
Default is the setting for comment.
empty
The font used for empty lines. While this may not seem very relevant at first, by setting the font’s size you can get a precise control over the amount of vertical whitespace in the output.
Default is the setting for text.
diagram
The font for the chord names above chord diagrams.
Default is the setting for comment.
diagram_base
The font for the base fret numbers in chord diagrams.
Default is the setting for text but at a small size.
chordfingers
The font used for drawing the fret positions that have fingering associated. This should not be modified unless you know what you are doing (and you probably don’t).
This font has an additonal property numbercolor that can be set to control the colour of the finger number. By default this is the theme background colour. Setting this colour to the foreground colour effectively hides the finger numbers.

Outlines

Outlines (bookmarks) can be automatically generated, controlled by settings in the config file. Most PDF viewers can show outlines and use them for easy navigation.

    // Bookmarks (PDF outlines).
    // fields:   primary and (optional) secondary fields.
    // label:    outline label
    // line:     text of the outline element
    // collapse: initial display is collapsed
    // letter:   sublevel with first letters if more
    // fold:     group by primary (NYI)
    // omit:     ignore this
    "outlines" : [
        { "fields"   : [ "sorttitle", "artist" ],
          "label"    : "By Title",
          "line"     : "%{title}%{artist| - %{}}",
          "collapse" : false,
          "letter"   : 5,
          "fold"     : false,
        },
        { "fields"   : [ "artist", "sorttitle" ],
          "label"    : "By Artist",
          "line"     : "%{artist|%{} - }%{title}",
          "collapse" : false,
          "letter"   : 5,
          "fold"     : false,
        },
    ],

The default configuration generates two outlines, one labelled By Title and one labelled By Artist. Each outline is ordered according to the meta data specified in "fields". The format of the outlines is specified in "line".

fields
The ordering of the outline. You can specify one or two metadata items.
When the field name is prefixed with a minus sign, the sort order is reversed. With a plus prefix the field is sorted numerically. Both prefixes may be supplied for reverse numeric sort order.
When you specify a metadata item that has multiple values they are split out in the outline.
label
The label for this outline.
line
The format of the outline.
collapse
If true, the outline is initially collapsed.
letter
If there are at least as many outline items with differing first letters than the amount specified here, an extra level of outlines (letter index) is created for easy navigation.
A value of zero disables this.
fold
For future use.

Helping develop a layout

If showlayout is true, the margins and other page layout details are shown on the page. This can be helpful to determine the optimal settings for your desired layout.
